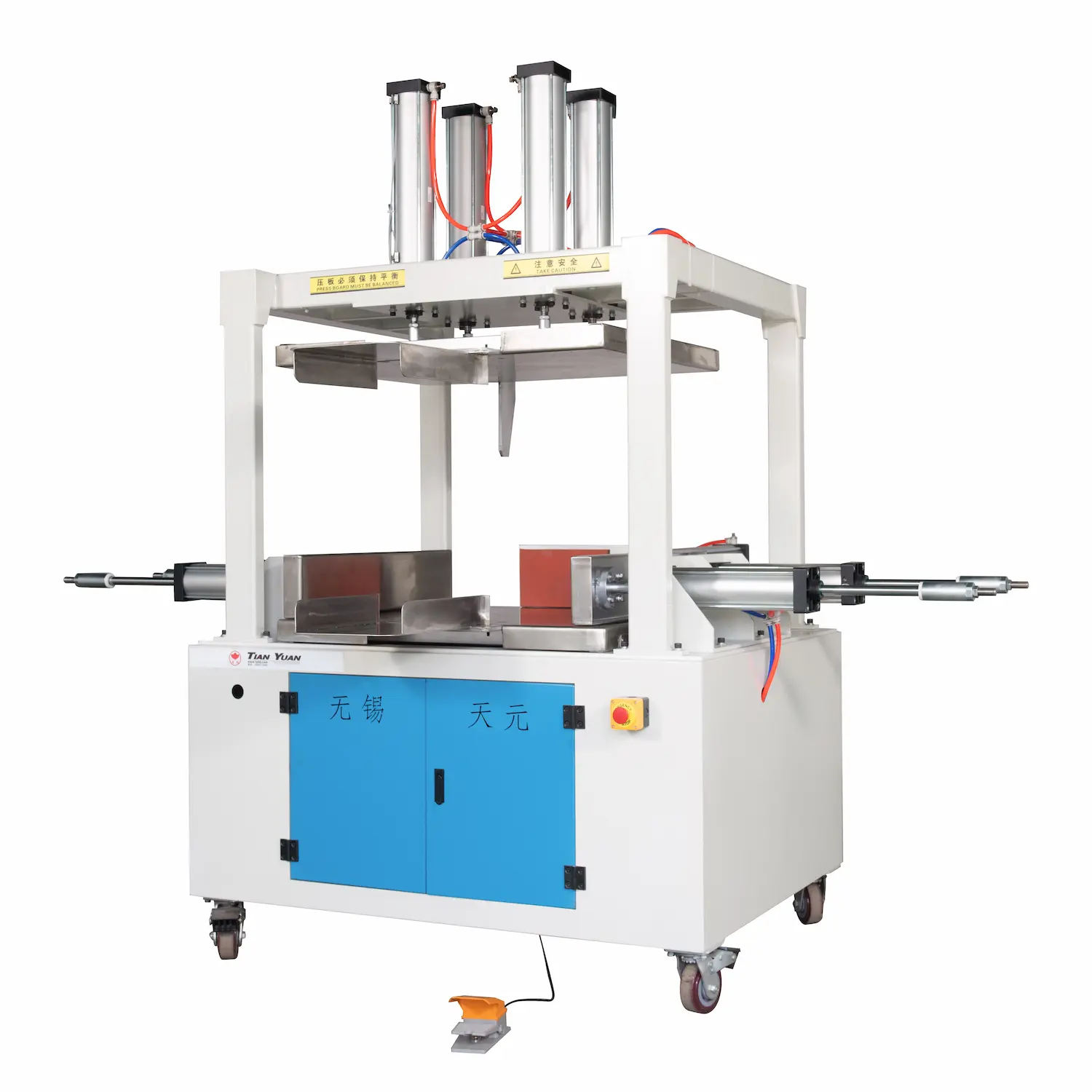

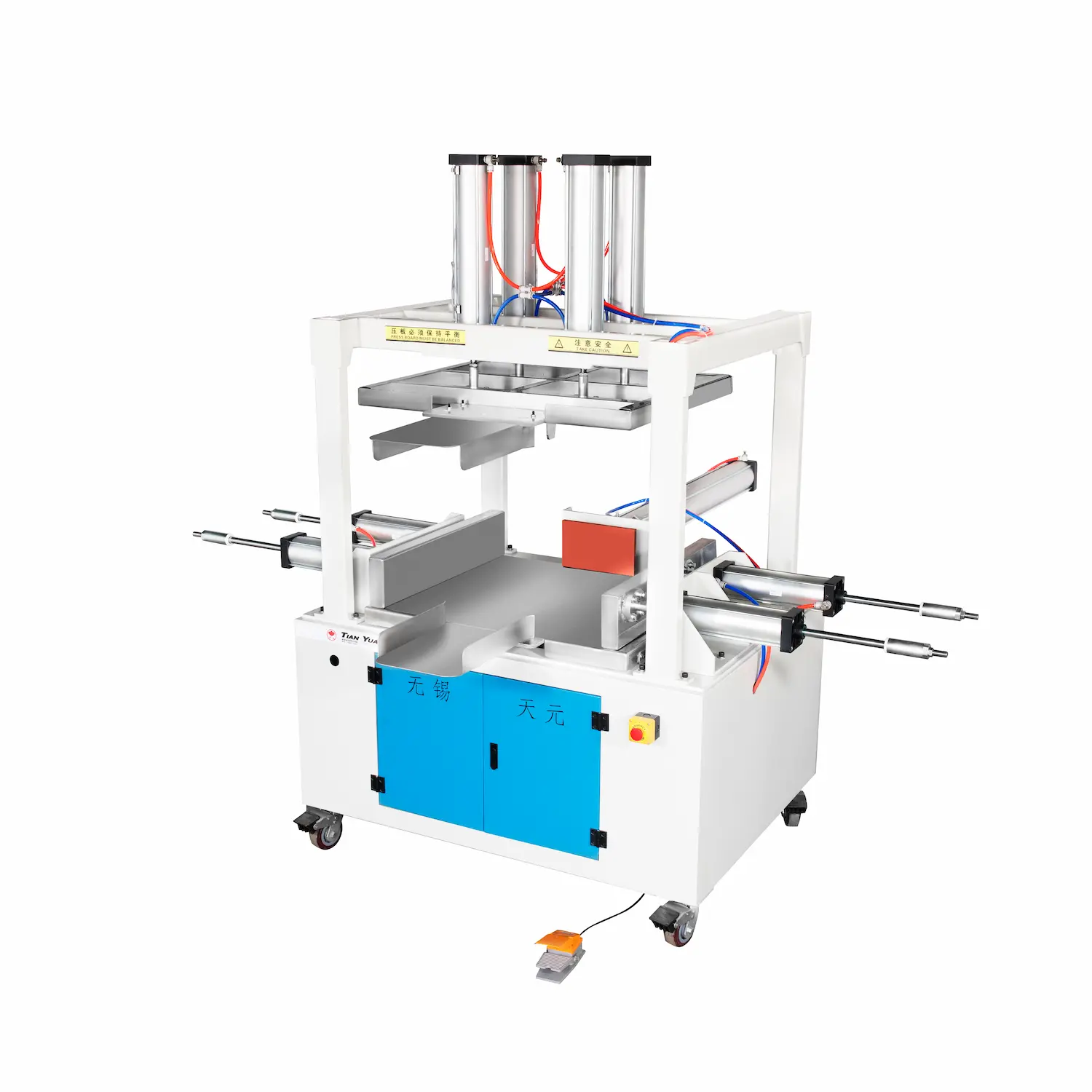

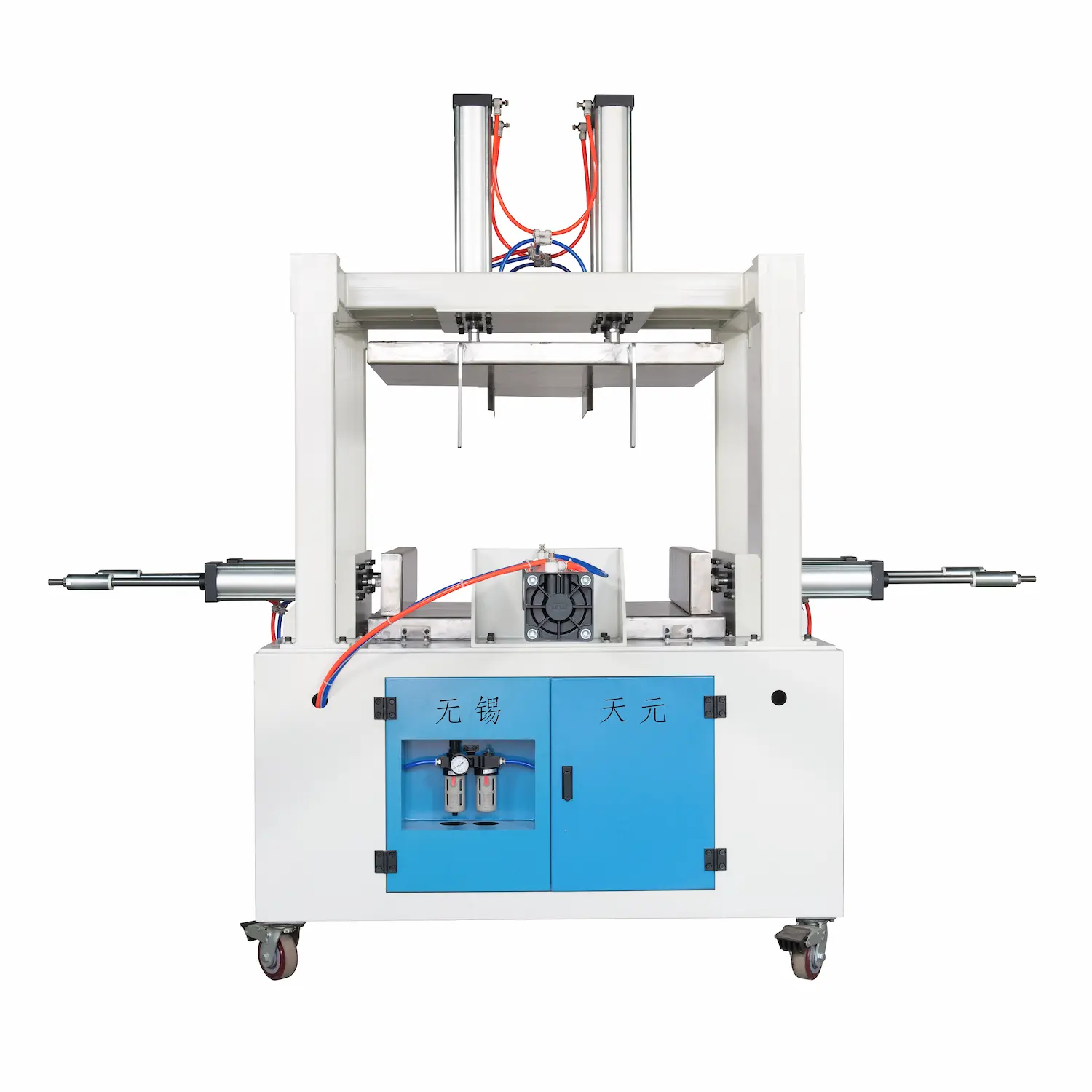

HFD-5000-A Compress Bagging Machine

Product Name HFD-5000-A Compress Bagging Machine
Voltage 220V,1-phase,50Hz
Power 0.5kW
Air pressure 0.5-0.8Mpa
Capacity 2-3 pieces/min
Compression up and down travel 500mm
Press plate opening dimension (L)800×(W)800mm
Upper press plate lifting height 650mm
Side press height 190mm
Bag mouth mold width Customizable within the range of 200-400mm
Machine dimension (L)2035×(W)1300×(H)2385mm
Packing dimension (L)2390×(W)1340×(H)2430mm
Gross weight 900kg

Kindly send us your project details and floor plan. We will quote for you within 24 hours!

Summary

The compress bagging machine is a packaging device specifically designed for various bulky items. It reduces the volume of products through simultaneous horizontal and vertical compression, facilitating manual insertion into packaging bags and enhancing packaging efficiency. ​



Application

Suitable for various fluffy products such as maternity pillows, pet nests, pet sofas, duvets, pillows, cushions, blankets, etc., especially suitable for the export packaging needs of the home textile industry. ​



Features

  1. Efficient compression method: horizontal + vertical bidirectional synchronous compression, achieving a more significant volume reduction effect compared to single-direction compression, making it easier to pack into bags; ​
  2. Wide range of adaptability: It can meet the packaging needs of special shapes such as maternity pillows and pet nests, as well as conventional bulky items such as duvets and blankets; ​
  3. Simple structural design: The machine structure is not complicated, reducing the threshold for operation and maintenance, making it easy to get started; ​
  4. Flexible and smooth operation: The operation process is flexible and efficient, which, combined with the manual bagging process, enhances the overall convenience of packaging.

Factory showcase

Raw material workshop – An independent raw material testing center has been established, covering an area of 200 square meters, and is staffed with 15 professional testing personnel.
