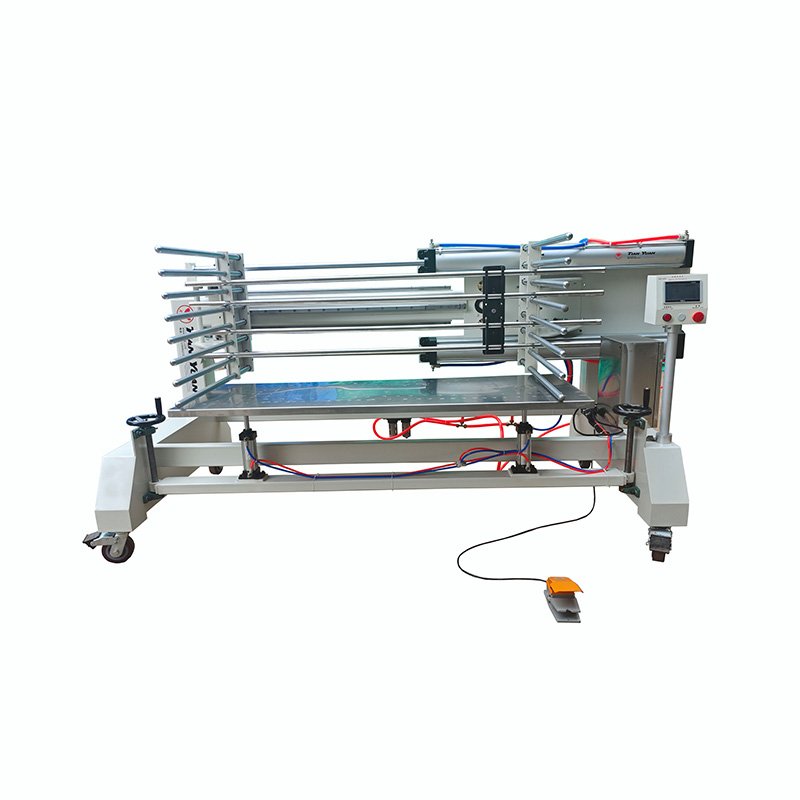

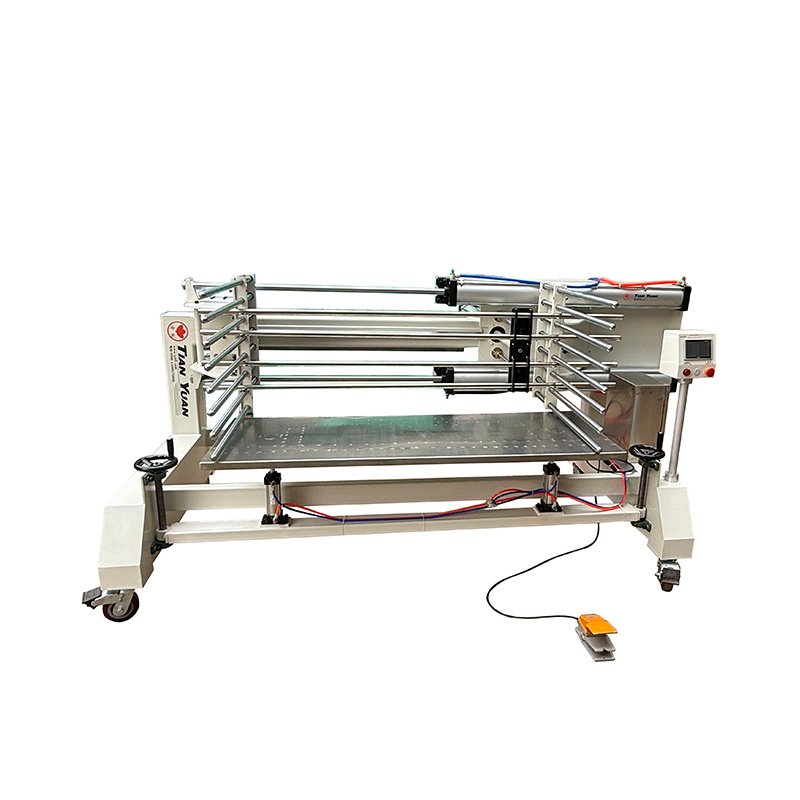

HFD-6000 Compress Bagging Machine

Product Name HFD-6000 Compress Bagging Machine
Control mode Button
Voltage 220V,1-phase,50Hz
Power 0.5kW
Air pressure 0.5-0.8Mpa
Capacity 2-3 pieces/min
Horizontal compression stroke 800mm, customizable
Compression plate dimension (L)600×(W)600mm, customizable
Machine dimension (L)2320×(W)1700×(H)1600mm
Gross weight 800kg

Kindly send us your project details and floor plan. We will quote for you within 24 hours!

Summary

The compress bagging machine is a packaging device specifically designed for bulky items. It reduces the height of the items through horizontal compression, enabling convenient bagging.



Application

Suitable for fluffy products such as clothing, quilts, pillows, and cushions, especially for the export packaging needs of the home textile industry.



Features

  1. Strong functional specificity: specifically designed to solve the problem of bagging fluffy items, with a direct effect of reducing widththrough horizontal compression.
  2. Simple structural design: The machine structure is not complicated, reducing the threshold for operation and maintenance.
  3. Flexible and efficient action: The operation process is flexible and smooth, enhancing the convenience and efficiency of bagging.
  4. Adequate travel distance and flexible adjustment: With a large compression travel distance, it supports the superimposed compression of multiple products. At the same time, the compression width can be freely adjusted according to packaging specifications, adapting to batch packaging and diverse needs.

Factory showcase

Raw material workshop – An independent raw material testing center has been established, covering an area of 200 square meters, and is staffed with 15 professional testing personnel.
