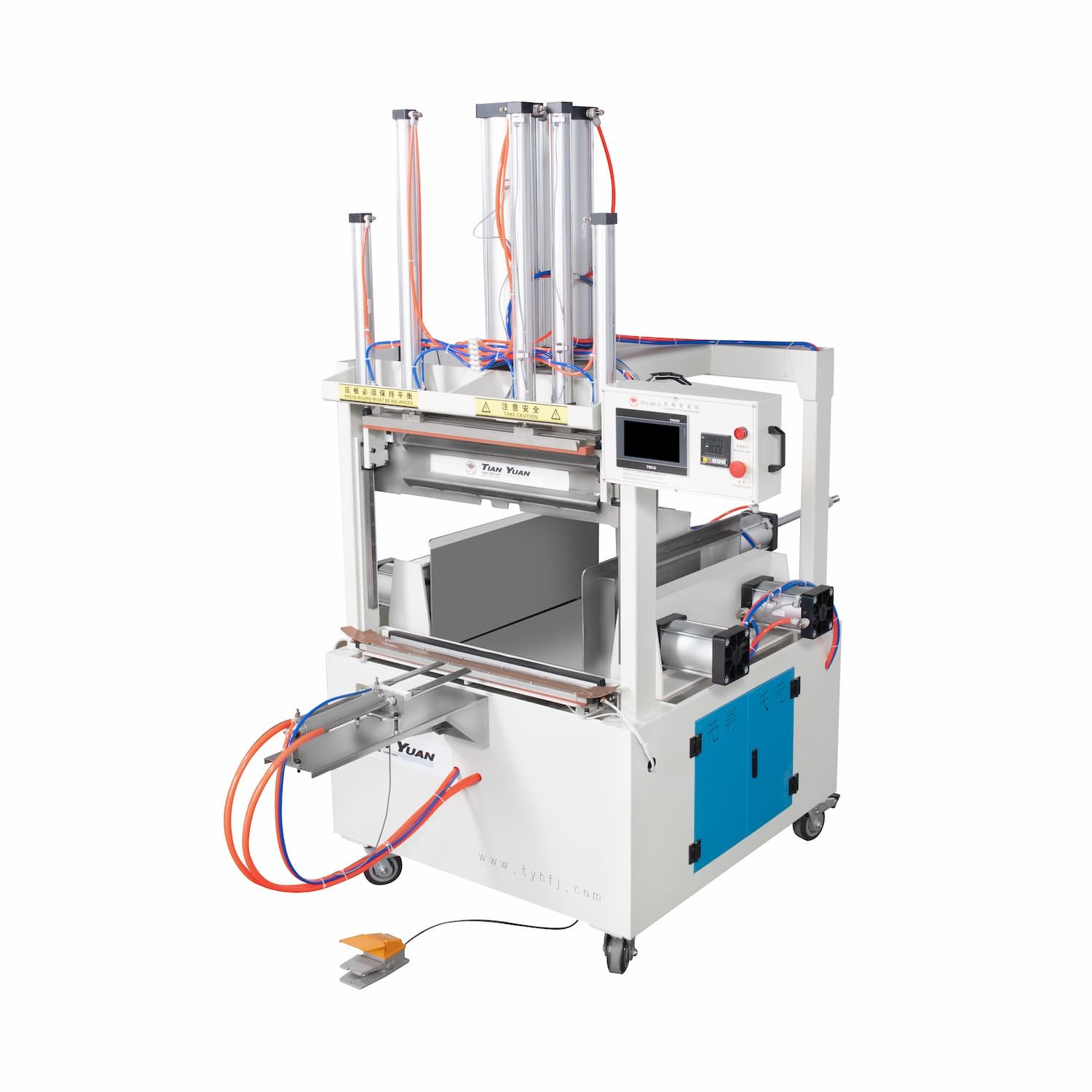

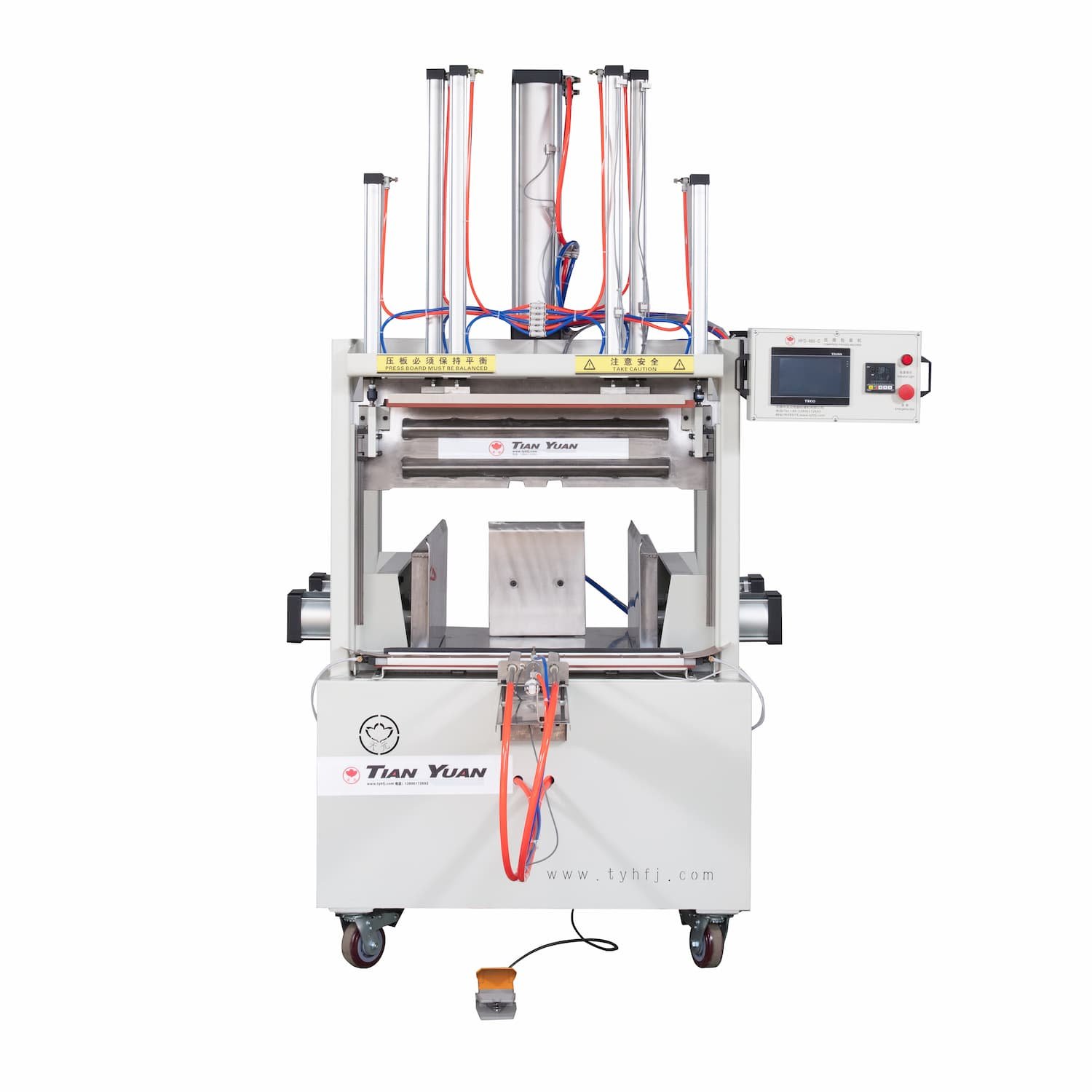

HFD-880-C Vacuum Sealing Machine

Product Name HFD-880-C Vacuum Sealing Machine
Control mode Touch screen
Voltage 380V,3-phase,50Hz
Power 4.5kW
Air pressure 0.4-0.8Mpa
Capacity 1 pieces/min
Compression board dimension (L)850mm×(W)650mm
Sealer dimension (L)760×(W)10mm
Side pressure plate height 350mm
Compression travel 600mm
Machine dimension (L)1700×(W)1350×(H)2395mm
Packing dimension (L)1760×(W)1380×(H)2400mm
Gross weight 1100kg
Net weight 900kg

Kindly send us your project details and floor plan. We will quote for you within 24 hours!

Summary

Specially customized for fluffy home textile products such as blankets, pillows, beanbags, maternity pillows, dog beds, etc., focusing on the core pain points of export enterprises, with the three advantages of “strong compression and vacuum pumping+sealing protection+flexible adaptation”, achieving a direct reduction of storage and transportation costs by more than 60% while ensuring stable quality, it is an efficient and reliable one-stop packaging solution. ​



Application

Core target audience: Home textile factories, soft furnishing brands, cross-border e-commerce sellers, especially suitable for export enterprises.

Suitable products: various fluffy home textile products such as blankets, pillows, cushions, sofa cushions, beanbags, maternity pillows, dog beds, etc.​

Application scenarios: finished product packaging, warehousing and storage, export transportation, bulk packaging, covering the entire chain. ​



Features

  1. Core advantages of cost reduction and efficiency improvement: Equipped with a customized six sided compression system, it can evenly apply pressure to the product in six directions: up, down, front, back, left, and right. The compression and vacuum process is precisely controlled without damaging the fiber structure; After compression, the finished product is in a regular block shape, which saves space when stacked and stored. The storage utilization rate doubles synchronously with the transportation loading capacity, effectively reducing storage leasing and logistics transportation costs.
  2. Stable and reliable quality assurance: Adopting compressed air drive mode, the operating state is stable and controllable; Paired with heat sealing technology for edge sealing, the seal is firm, tight, and leak free, with dual protection against moisture and insect damage, making it suitable for complex and demanding transportation scenarios such as long-distance sea freight.
  3. Flexible adaptation to production needs: The device body structure is simple and easy to maintain in the later stage; The operation process is simple and easy to understand, greatly improving production efficiency; Support multi specification size customization, perfectly adapting to the dual needs of large-scale standardized production and small-scale personalized customization.

Factory showcase

Raw material workshop – An independent raw material testing center has been established, covering an area of 200 square meters, and is staffed with 15 professional testing personnel.
