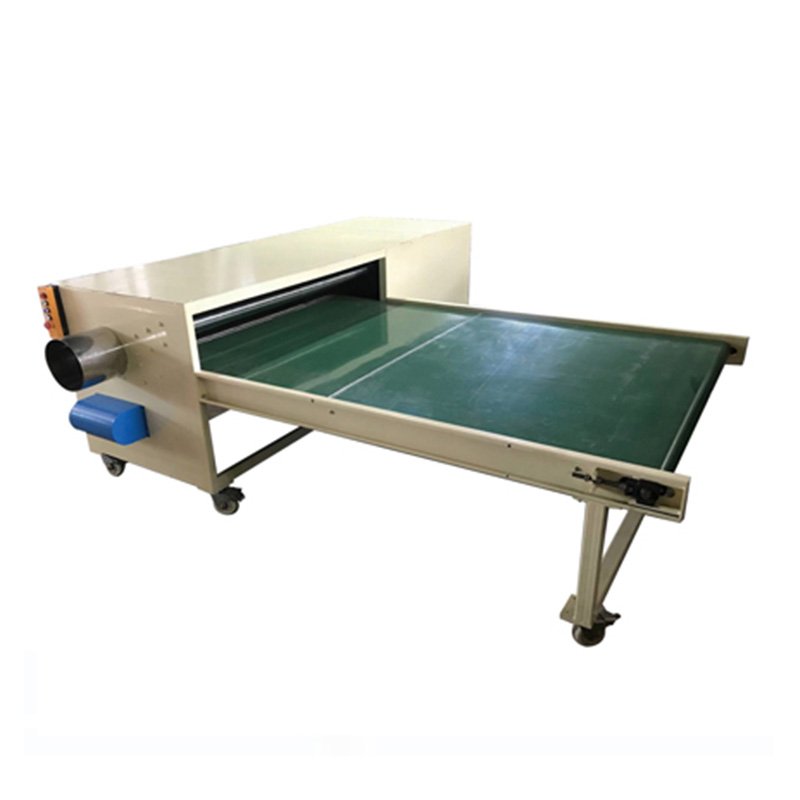

JDJ-3000 Mattress Rolling Machine

Products

JDJ-3000 Mattress Rolling Machine

Product Name	JDJ-3000 Mattress Rolling Machine
Control mode	Button
Voltage	380V,3-phase,50Hz
Power	2.25kW
Air pressure	0.4-0.8Mpa
Capacity	1-2 pieces/min
Rolling diameter	320mm(customizable)
Mattress dimension	1000×2000×70mm(customizable)
Outlet outer ring diameter	Compressed first and then rolled, no limit on diameter
Machine dimension	(L)3600×(W)2950×(H)1220mm

Kindly send us your project details and floor plan. We will quote for you within 24 hours!

Summary

Tian Yuan mattress rolling machine is specifically designed for mattress packaging, automatically rolls without compression, ensuring a simple and efficient process. It is compatible with various types of mattresses, provides secure rolling, saves storage and transportation costs, and is suitable for large-scale factory production.

Application

Suitable for foam mattresses with a density of 30kg/㎡or less, or spring mattresses of equivalent hardness.

Features

1. Ultimate space optimization: After strong compression and winding, the volume of the mattress is significantly reduced, reducing storage and transportation costs;
2. Highly protective: The sealed packaging isolates moisture, dust, and bumps, ensuring stable quality during storage and transportation of the mattress;
3. Wide adaptability: compatible with mattresses of different thicknesses and sizes, with flexible operation, meeting diverse production needs.

Factory showcase

Raw material workshop – An independent raw material testing center has been established, covering an area of 200 square meters, and is staffed with 15 professional testing personnel.
